Product Description:

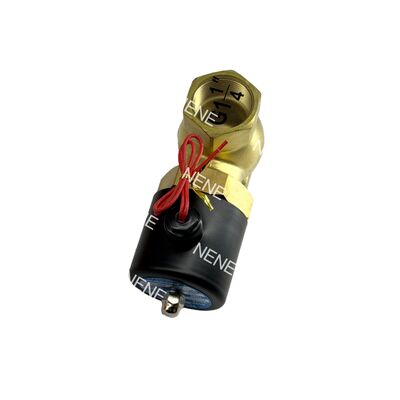

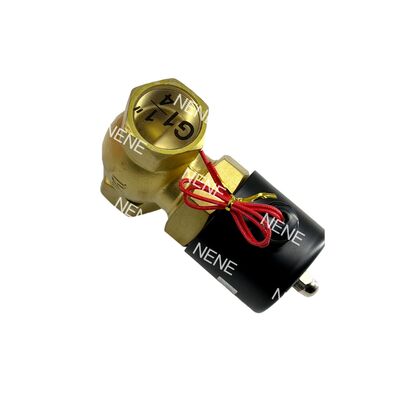

The UNID US series solenoid valve incorporates an advanced multiplex-drive piston guide design. It operates as a normally closed valve, meaning it remains closed when de-energized and opens only when energized, providing reliable control in various applications.
The valve body is crafted from high-quality cast bronze, which ensures excellent resistance to corrosion. This makes the valve highly suitable for handling a range of industrial fluids where durability and longevity are essential.
This solenoid valve series is compatible with media such as water, air, steam, and heavy oil. It can operate effectively within a fluid temperature range of -5°C to 185°C, utilizing PTFE seals to maintain performance under varying temperature conditions.
To accommodate different international piping standards, the US series valves come with standard threaded connections including BSPT, NPT, and BSP. Additionally, the coil is available in standard voltages of 110VAC, 220VAC, and 24VDC. Custom voltage options can also be provided upon special request.
The versatile UNID US series solenoid valves are widely deployed in various fields such as automation equipment, HVAC systems, steam processes, and fuel oil pipelines, demonstrating their broad applicability and reliability in demanding industrial environments.
Features:
The valve features a reliable multiplex-drive piston structure designed specifically for high-pressure handling and effective anti-clogging performance. This ensures consistent operation even under demanding conditions.
Constructed with a cast bronze valve body, it offers excellent corrosion resistance and enhanced durability, making it suitable for long-term use in various industrial environments.
Equipped with high-temperature seals made from PTFE combined with 15% glass fiber, the valve can withstand temperatures up to 185°C. This makes it ideal for applications involving hot fluids.
The valve is compatible with multiple media types such as water, air, steam, and heavy oil. It supports a wide range of operating pressure differentials; detailed specifications can be found in the technical data.
Available in multiple port sizes ranging from 1/2" to 2", with a flow coefficient (Cv) between 4.0 and 48, the valve caters to diverse flow requirements and installation needs.
The maximum operating pressure differential is up to 15 kgf/cm² for water and air, and up to 10 kgf/cm² for steam and heavy oil, though these values may vary depending on the specific model.
Optional high-pressure versions supporting pressure levels of 20, 30, and 40 kgf/cm² are also available. Customers are advised to specify the type of fluid when placing an order to ensure proper configuration.
The valve supports coil voltage tolerances of AC ±10% and DC ±1%, guaranteeing stable and reliable operation under fluctuating electrical conditions.
Threaded connection options include BSPT, NPT, and BSP, providing flexibility for various installation setups.
Its compact and lightweight design allows for easy integration into existing systems without adding significant bulk or weight.
Technical Parameters:
| Spring |
Stainless Steel |
| Coil |
Special Copper Wire (H) |
| Piston |
Brass |
| Tube |
Stainless Steel |
| Plug |
PTFE + 15% Glass Fiber (GF) |
| Bonnet/Nut |
PTFE |
| Core Needle |
Stainless Steel |
| Body |
Cast Bronze |
Applications:
Industrial Process Control
Industrial process control involves the use of various technologies and methodologies to monitor and manage different manufacturing and production operations. This ensures efficiency, safety, and reliability in industrial environments.
HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems play a vital role in maintaining comfortable and controlled environments in both residential and industrial settings. These systems regulate temperature, humidity, and air quality.
Steam Heating Equipment
Steam heating equipment is widely utilized in industries where precise and consistent heat application is necessary. It offers an efficient means of distributing thermal energy for various industrial processes.
Fuel Burner and Transfer Systems
Fuel burner and transfer systems are essential components in energy generation and heating applications. They manage the combustion process and the movement of fuels to optimize performance and reduce emissions.
Water Treatment and Supply Systems
Water treatment and supply systems ensure the availability of clean and safe water for industrial operations. These systems involve purification, conditioning, and distribution of water to meet specific process requirements.
Industry Applications
The technologies mentioned above find extensive applications across various sectors, including petrochemical, power generation, and metallurgy industries. Their integration enhances operational efficiency and supports sustainable industrial development.
Support and Services:
Our Pneumatic Solenoid Valve product is designed for reliable and efficient operation in various industrial applications. For technical support, please ensure that you have the model number, specifications, and details of the issue ready when seeking assistance.
We offer comprehensive services including installation guidance, troubleshooting, maintenance tips, and replacement part information to help you maximize the performance and lifespan of your pneumatic solenoid valve.
Our technical support team is equipped to assist with wiring diagrams, pressure and flow requirements, and compatibility with different pneumatic systems. We recommend regular inspection and cleaning to prevent contamination and ensure optimal valve function.
For repair and warranty services, please refer to the product manual for detailed instructions on how to proceed. We are committed to providing timely and effective support to minimize downtime and maintain the efficiency of your pneumatic systems.
Additional resources such as user manuals, FAQs, and technical datasheets are available to assist you in understanding and utilizing your pneumatic solenoid valve to its fullest potential.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is individually wrapped in anti-static bubble wrap and placed inside a sturdy cardboard box. The box is then filled with protective foam inserts to prevent movement during transit. All packaging materials are environmentally friendly and designed to provide maximum protection against moisture, dust, and mechanical damage.
Shipping:
We offer reliable shipping options to deliver the Pneumatic Solenoid Valve safely and promptly to your location. Products are shipped via trusted carriers with tracking available for all orders. Standard shipping typically takes 5-7 business days, while expedited options are available upon request. Each shipment includes a detailed packing list and invoice to ensure accurate order fulfillment.
