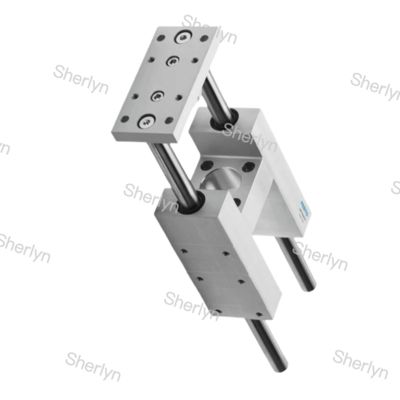

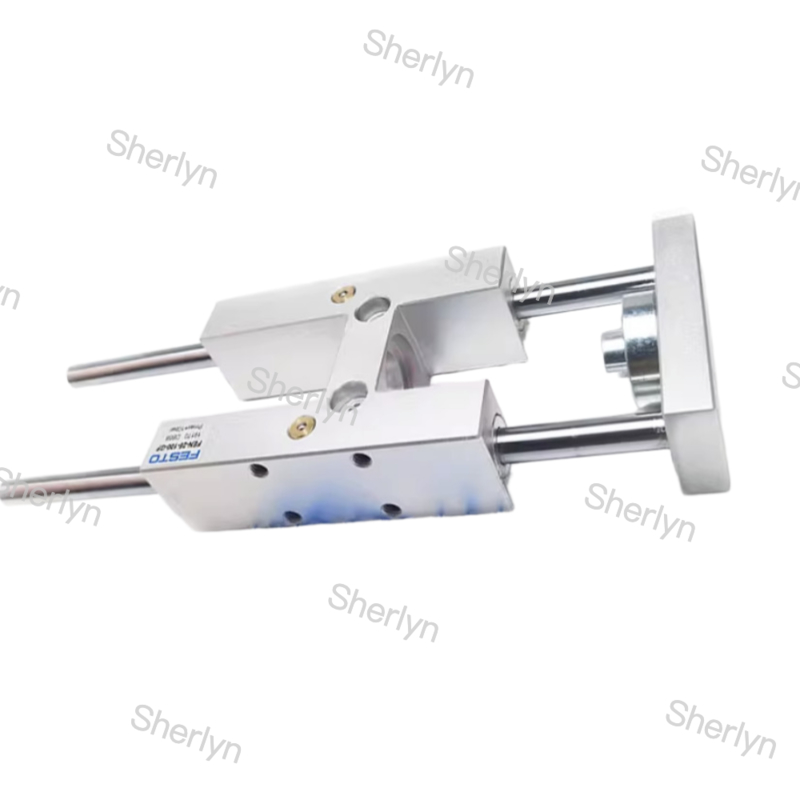

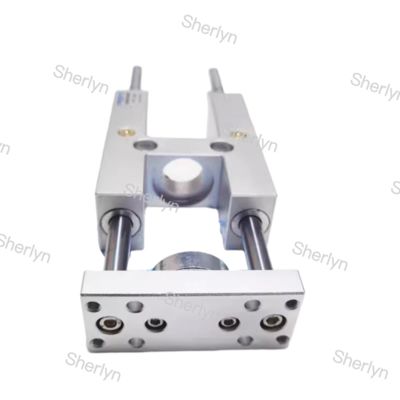

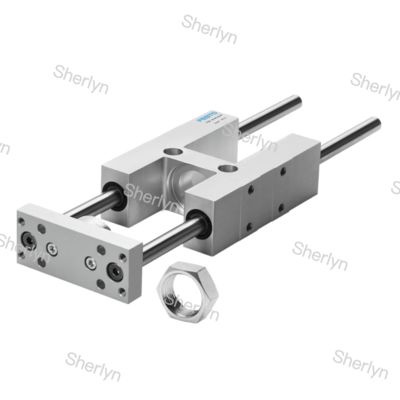

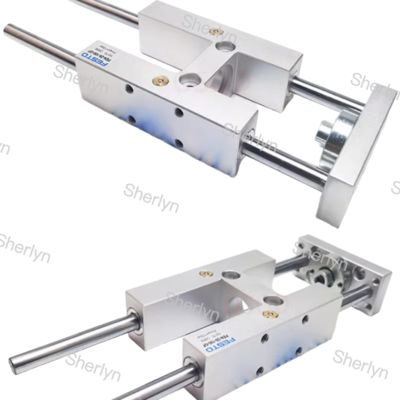

FEN/FENG-12/16-200-GF FESTO Cylinder Guide Unit Stroke 200 Mm

Technical Data

• Size12/16
• Stroke200 mm
• Mounting positionoptional
• GuidePlain-bearing guide
• DesignGuidance
• Explosion protectionThe information in the certificate must be observed!
• LABS (PWIS) conformityVDMA24364-B2-L
• Ambient temperature-20 °C ... 80 °C

Product Description:

The FESTO FEN series guided cylinders are designed for high-precision applications requiring reliable linear motion. Key characteristics include:

• Integrated Guidance System: These cylinders feature built-in guide rods or profile rails, providing exceptional anti-rotation capability and moment resistance. This ensures precise positioning and stable movement even under significant side loads.
• High Rigidity and Load Capacity: The robust construction enables handling of substantial moment loads and lateral forces. This makes them suitable for applications requiring high stiffness and durability.
• Compact Design Space: Despite their robust construction, FEN series cylinders maintain a compact footprint. This space-efficient design allows for easy integration into machinery with limited installation space.
• Smooth Operation: Available with either slide bushings or recirculating ball bearing guides, these cylinders offer smooth, low-friction movement with high positioning accuracy.
• Maintenance-Friendly Design: Many models feature long service life with minimal maintenance requirements. Corrosion-resistant options are available for challenging environments.

Applications:

The FEN series finds extensive use across various industrial automation sectors:

• Precision Assembly Operations: Ideal for pick-and-place systems, component insertion, and precision assembly tasks where accurate positioning is critical.
• Material Handling Systems: Widely used in automated transfer lines, loading/unloading stations, and material positioning equipment that requires guided linear motion.
• Testing and Inspection Equipment: Suitable for applications requiring precise linear movement in testing apparatus, measurement devices, and quality control stations.
• Automated Production Lines: Commonly implemented in packaging machinery, semiconductor manufacturing equipment, and automated production systems.
• Electronics Manufacturing: Particularly valuable in PCB handling, component assembly, and other electronics production applications where precise, non-rotating linear motion is essential.

Support and Services:

Our company offers comprehensive product technical support and services for the Piston Pneumatic Cylinder. Our team of experts is dedicated to assisting customers with product inquiries, troubleshooting, and any technical issues that may arise. Whether you need assistance with installation, maintenance, or optimization of the Piston Pneumatic Cylinder, our technical support team is here to help.

Packing and Shipping:

Product Packaging:

The Piston Pneumatic Cylinder will be carefully packaged in a sturdy cardboard box to ensure safe transportation.

Shipping:

We offer reliable shipping services to deliver the product to your desired location. The package will be securely sealed and labeled for easy identification.
