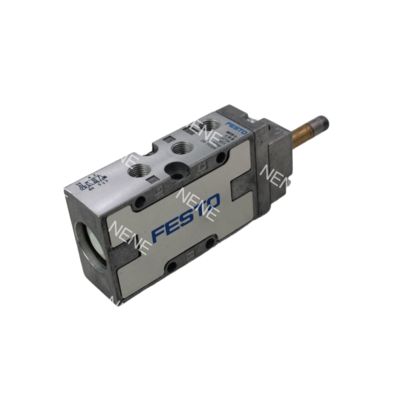

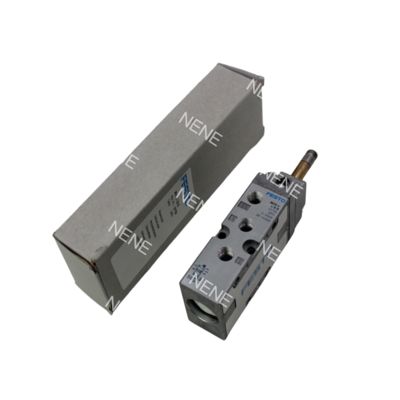

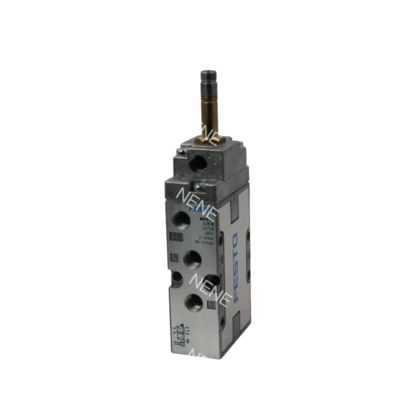

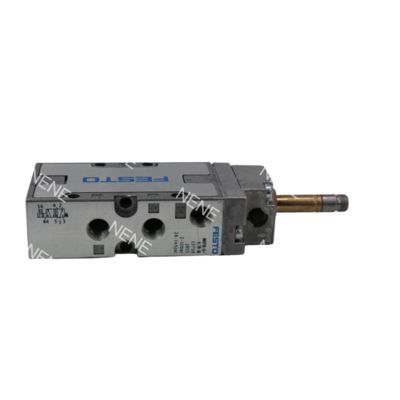

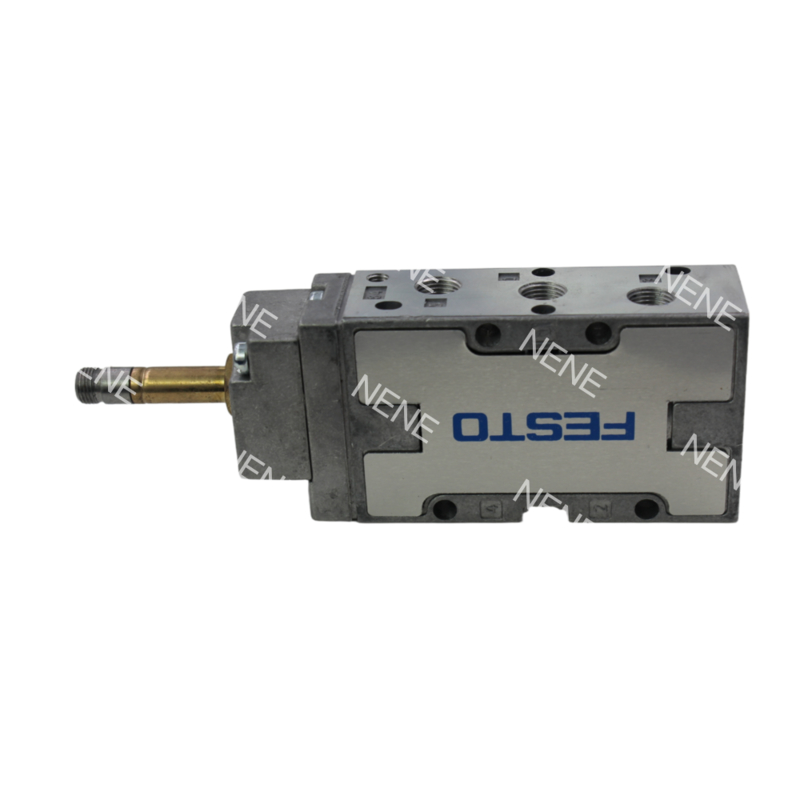

MFH-3-1/4 9964 Aluminum Festo Solenoid Valve G1/8 G1/4 G1/2 G3/4 Pneumatic Connection

Product Description:

The FESTO MFH/JMFH series , widely known in the industry as the "Tiger Valve" for its durable and dependable performance, is a classic range of pneumatic solenoid valves. Engineered for high flow rates in a remarkably compact design, this series is an excellent choice for a wide variety of automation applications.

The MFH series consists of single solenoid valves (monostable) with spring return, while the JMFH series features double solenoid valves (bistable) with memory function. Both series offer flexible mounting options, allowing for direct installation via sub-base or easy integration onto standardized ISO mounting interfaces (such as PAL or PRS systems) for modular valve terminal setups. They are the proven solution for precision control of cylinders, grippers, and other pneumatic actuators.

Features:

High Flow in Compact Design: Optimized internal flow paths ensure excellent flow characteristics (e.g., Cv values up to ~1.8 or higher) despite the very small build size, enabling fast cylinder cycle times.

Exceptional Flexibility & Modularity:

• Multiple Functions: Available as 5/2-way, 5/3-way, and 3/2-way valves.
• Versatile Mounting: Can be installed individually via threaded ports or quickly snapped onto standardized valve manifolds, allowing for easy creation of multi-valve control stations.
• Interchangeable Coils: Solenoid coils are available separately in a wide range of voltages (e.g., 24V DC, 110V AC, 230V AC) and types (e.g., standard, low-wattage, manual override), providing great electrical compatibility.

Robustness and Reliability:

• Durable metal body (e.g., aluminum): ensures longevity and resistance in harsh industrial environments.
• High IP65 protection rating (when used with appropriate connector): guards against dust and water jets.
• Broad Compatibility: Operates effectively within a standard pressure range of 0.15 MPa to 0.9 MPa (1.5 to 9 bar), suitable for most common pneumatic systems.

Applications:

The MFH/JMFH Tiger Valve series is widely used in various industries due to its reliability and compact power. It finds applications in different sectors:

General Factory Automation: The valves are well-suited for assembly machines, material handling equipment, packaging machinery, and CNC systems, providing precise actuator control.

Automotive Manufacturing: They are employed in welding, clamping, pressing, and testing stations on production lines where speed and reliability are crucial.

Plastics and Rubber Machinery: These valves control auxiliary functions in injection molding machines, blow molders, and robotic handlers.

Packaging and Food & Beverage Industry: They are ideal for controlling actuators in filling, capping, labeling, and sorting machines, but specific material and certification requirements need to be considered.
