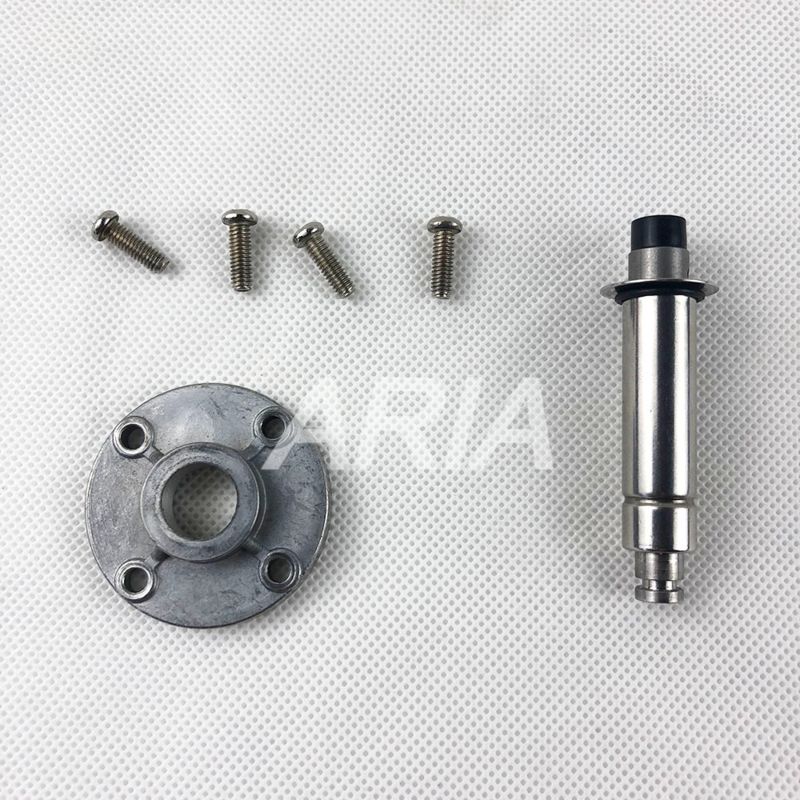

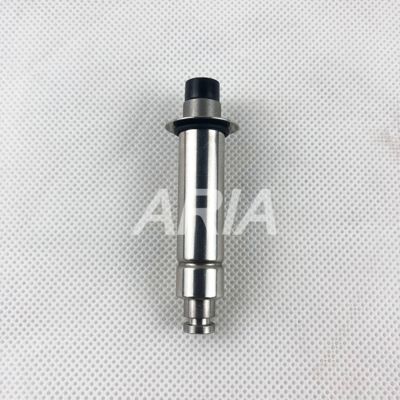

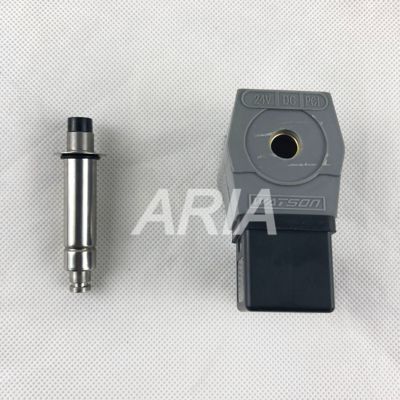

Electromagnetic Pulse Valve Coil With Pilot Head Clamp Spring Wave Pad PC1 Coil WPS-TZ-XQB

Product Description:

Connection Specification: Features a 3-inch submerged design, suitable for installation inside air receivers (air tanks).

Operating Pressure Range: Typically ranges from 1.5 bar to 8 bar.

Operating Temperature:
Standard version: Suitable for an ambient temperature of -40°C to +100°C.
High-temperature version: Operable in an environment of -20°C to +200°C.

Protection Class: Achieves IP65, providing dust resistance and protection against water spray from certain directions.

Weight: Approximately 11 kg.

Technical Principle: Adopts pulse electromagnet technology. Through the rapid attraction and release of the pulse electromagnet, high-speed pulsed airflow is generated, enabling rapid on-off control of fluid and regulation of flow direction.

Material Composition:
The 3/4-inch upper cover is generally made of die-cast aluminum.
The 3-inch submerged valve body is also constructed from die-cast aluminum.
The diaphragm is usually made of materials such as TPE (Thermoplastic Elastomer) (selected based on specific working conditions).

Key Technical Terminology Supplementary Explanation

Submerged Pulse Valve: A specialized pulse valve installed inside the air receiver (instead of being mounted externally). It directly releases pulsed air into the filter bag area, reducing airflow resistance and improving dust-cleaning efficiency, which is widely used in large-scale baghouse dust collectors.

Die-Cast Aluminum: A metal processing material formed by injecting molten aluminum into a mold under pressure. It has the advantages of high structural strength, good dimensional accuracy, and lightweight, making it suitable for manufacturing valve bodies and covers that require both pressure resistance and portability.

TPE (Thermoplastic Elastomer): A flexible material combining the elasticity of rubber and the processability of plastic. It exhibits excellent wear resistance, aging resistance, and temperature adaptability, making it a common choice for pulse valve diaphragms (especially in medium-temperature working conditions).

Air Receiver (Air Tank): A pressure vessel in the dust collector system used to store compressed air. Installing the submerged pulse valve inside it ensures stable air pressure during the pulse blowing process, avoiding pressure fluctuations that affect cleaning performance.

Technical Parameters:

Applications:

The WATSON Pulse Jet Valves, model number WPS-CA/TG76, are versatile and reliable diaphragm valves suitable for a wide range of applications across various industries.

These solenoid valve pulse dust removal valves are essential components in pulse jet systems used for efficient and effective dust collection and filtration. The WATSON Pulse Jet Valves, with their CE certification, ensure high performance and durability, making them a preferred choice for industrial applications.

Product Application Occasions and Scenarios:

- Industrial Manufacturing Plants: The WATSON Pulse Jet Valves are ideal for use in manufacturing plants where dust collection and air filtration are crucial for maintaining a clean and safe working environment. They can be used in conjunction with pulse jet systems to efficiently clean filters and remove dust particles from the air.

- Power Plants: In power generation facilities, the Pulse Jet Valves play a vital role in controlling emissions and maintaining air quality standards. The WATSON Pulse Jet Valves, with their pneumatic power operation and 3'' inch port size, are well-suited for handling the demanding conditions in power plants.

- Food Processing Facilities: Food processing plants require strict hygiene standards, and the WATSON Pulse Jet Valves with NBR and FKM diaphragm materials ensure compliance with food safety regulations. These valves can be used to control dust and maintain clean air quality in food processing environments.

- Pharmaceutical Industry: The WATSON Pulse Jet Valves are also suitable for pharmaceutical manufacturing facilities where maintaining a clean and sterile environment is critical. The reliable performance of these valves ensures efficient dust removal and air filtration in pharmaceutical production processes.

With a minimum order quantity of 1 and flexible pricing options, the WATSON Pulse Jet Valves offer cost-effective solutions for dust collection and air filtration needs. The packaging details can be customized as per the clients' requirements, and the quick delivery time of 1-7 work days after payment ensures timely availability of the product.

Payment terms including T/T, Western Union, and Paypal provide convenient options for purchasing the WATSON Pulse Jet Valves. With a supply ability of 5000 pieces per month, these valves are readily available to meet the demands of various industries.

Packing and Shipping:

Product Packaging for Pulse Jet Valves:

The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure safe transit. Each valve is individually wrapped in protective material to prevent any damage during shipping.

Shipping Information:

Orders for Pulse Jet Valves are typically shipped out within 2 business days. We offer standard and expedited shipping options to meet your delivery needs. Tracking information will be provided once the order has been dispatched.
